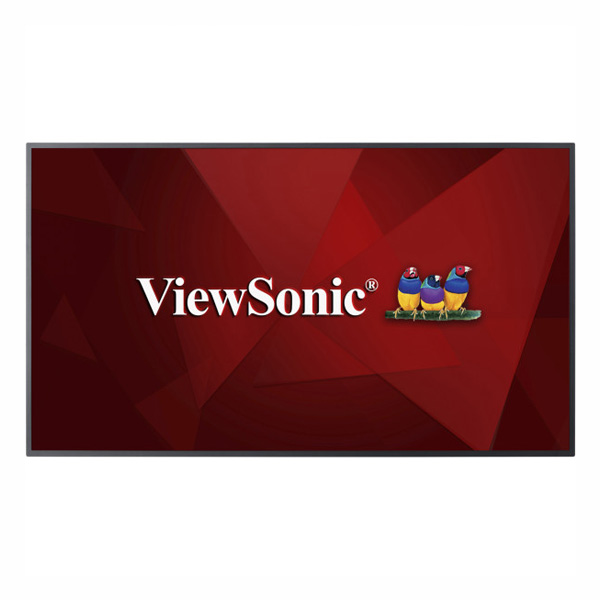

ViewSonic CDE8600

86″ 4K Ultra HD Commercial Display

  • ViewBoard® Cast content sharing software
  • USB multimedia player
  • Dual Computing expansion PC slot for Intel OPS
  • Supports HDMI CEC pass-through
  • Flicker-free and Blue Light Filter eye-care technologies
In winkelmand

ViewSonic CDE8600


Offerte aanvragen

ViewSonic CDE8600

The ViewSonic® CDE8600 is an 86″ 4K Ultra HD display with conferencing capabilities. With features including a razor sharp resolution of 3840 x 2160, ultra wide viewing angles, 2 x 20W speakers, and file sharing software, the display has been designed with the meeting room scenario in mind. The pre-installed ViewBoard® Cast on-site content sharing software enables multiple users to participate in conferences and share content with each other simultaneously, transforming CDE8600 into a dynamic content hub. This display’s integrated quad-core processor and 16GB internal memory allows users to play multimedia content from a USB without the need for a PC, while the HDMI and VGA inputs offer connection with a variety of high definition devices. For a more powerful computing OS platform, CDE8600 offers the dual PC slots for expansion. Flicker-free and Blue Light Filter eye-care technologies provide viewing that is comfortable for the human eye, from start to finish.

  • 4K Ultra HD Resolution

    With four-times the resolution of Full HD, this Ultra HD 3840 x 2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.

  • ViewBoard® Cast: Content Sharing Software

    ViewBoard® Cast is a content sharing app for mobile devices* that enables 1080p content to be streamed from a user’s device onto ViewBoard® wirelessly or over a cable network. This function will be available via online firmware upgrade when connecting to the internet.

  • Integrated USB Multimedia Player

    This display features an integrated media player with a convenient USB playback function. Now photos, music, and 1080p video can be quickly displayed on-screen directly from a USB drive – without the need for a PC.

  • Zoom

    Zoom is a conferencing app that enables content to be streamed from a user’s devices onto ViewBoard® over the internet or an international wireless services (including cell phones and landlines). It supports up to 10 participants, allowing 4 of the 10 to stream content from their laptop or smart phone.

vController™ Software: Remote Display Management

Remote display management without needing to type in commands. By using an RS232 or RJ45 connection between a computer and digital signage, users can manage the signage’s OSD settings such as On/Off, display signal source, audio, and other general items.

  • Control Multiple HDMI Devices

    With HDMI CEC functionality, remote controller signals can be transmitted via HDMI cable to connected HDMI devices. This enables out-of-sight DVD players, sound systems, and other devices to be directly controlled with the display’s remote controller.

  • Broadcast Multimedia without External Speakers

    Dual integrated speakers operate at a powerful 20 watts to compliment eye-catching multimedia content with incredible sound and creating a lasting audio-visual impression on your audience.

  • Enhanced Viewing Comfort

    This display adopts exclusive Flicker-Free and Blue Light Filter eye-care technologies. The display’s constant LED light source and reduced blue light exposure allow you to enjoy longer viewing time with imperceptible screen flickering at all brightness levels.

Specificaties voor ViewSonic CDE8600


  • Panel Size 86"
  • Type/ Tech TFT LCD Module with LED Backlight
  • Display Area (mm) 1895.04 (H) x 1065.96 (V)
  • Aspect Ratio 16:9
  • Resolution 3840x2160
  • Colors 1.07B colors (10bit)
  • Brightness 400 nits(typ.)
  • Contrast Ratio 1200:1 (typ.)
  • Response Time 8ms
  • Viewing Angles H = 178, V = 178 (typ.)
  • Backlight DLED
  • Backlight Life 30,000 Hours Min.
  • Hardness 7H


  • HDMI 4x
  • RGB / VGA 1x
  • Audio 1x
  • CVBS (AV) 1x
  • YPbPr 1x
  • RS232 1x
  • PC Slot 1x PC Slot (Intel OPS Standard)
  • 1x SDM


  • HDMI 1x (for one HDMI 1/2/3)
  • Audio (Earphone Out) 1x
  • SPDIF 1x
  • RS232 1x


  • RJ45 1x


  • 2.0 Type A 1x
  • 3.0 Type A 2x


  • Speakers 20w x2


  • Processor ARM Cortex A53 Quad Core 1.5G Hz CPU
  • Memory 2GB DDR3
  • Storage 16GB eMMC


  • VGA Refer to timing table
  • HDMI 480i, 480p,720p, 1080p, up to 2160p
  • CVBS 480i


  • Voltage 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
  • Consumption 300W


  • Wall Mount (VESA® ) 600 x 400mm; Screw: M8 x 20mm


  • Temperature (º C) 32°F to 104°F (0°C to 40°C)
  • Humidity 10% ~ 90% non-condensing


  • Physical W/o Stand (mm / Inch) 1962 x 102.6 x 1133 mm 77.24 x 4.04 x 44.61 inch
  • Physical (mm / Inch) 2125 x 275 x 1275 mm 83.66 x 10.83 x 50.2 in
  • Packaging (mm / Inch) 2150 x 1140 x 114 mm 84.64 x 44.88 x 4.49 in


  • Net W/o Stand (kg / Lb) 55.6 kg / 122.58 lbs
  • Gross (kg / Lb) 77.1 kg / 169.98lbs


  • Standard cTUVus, FCC, MX-CoC, Mexico Energy, CE, CB, RoHS, ErP, REACH, WEEE, CCC, China Energy Label


  • 1. Power cable(1.5 meters) x 4 (EU, AU, UK, US)
  • 2. Remote control with batteries
  • 3. 3M HDMI cable
  • 4. QSG
